Reed Instruments

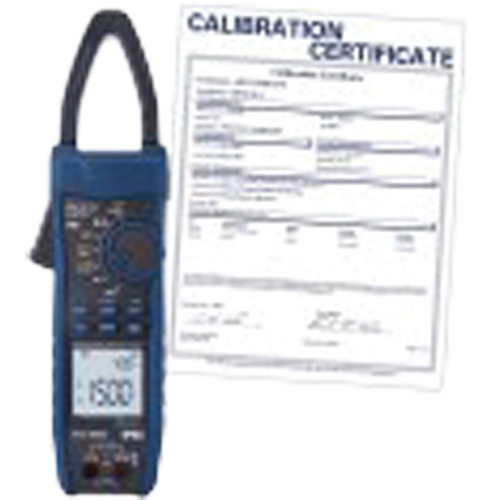

Professional Solar Clamp Meter with Traceable Certification, AC/DC Voltage, AC/DC Current

Model: ID652

Mfr. No.: R5075-NIST

  • Professional Solar Clamp Meter with Traceable Certification, AC/DC Voltage, AC/DC Current Seagulf Marine Industries Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Includes

  • Thermocouple Wire Probe (Type K)
  • Thermocouple Adapter
  • Test Leads
  • Carrying Case
  • Batteries

Voltage Readings

AC/DC

Current Readings

AC/DC

Resistance Range

999.9Ω, 9.999KΩ, 99.99KΩ

Capacitance Range

100µF, 1000µF

Frequency Range

5Hz to 999.9Hz

DC Power Range

999.9kVA, 2500kVA

Temperature Range

-40 to 752°F (-40 to 400°C)

Jaw Opening

1.4" (35mm)

Power Supply

(2) AA Batteries

Standard(s) Met

CE, ETL, ROHS, IP65

Country Of Origin

China

  • Measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature
  • High-resolution 9,999-count backlit LCD display
  • Dual display allows simultaneous viewing of voltage and current measurements
  • True RMS voltage and current for accurate measurements
  • Expandable AC current measurement up to 3000A with the flexible current probe (R5065, sold separately)
  • Slim jaw design for easy access to cables in crowded combiner boxes, with the capacity to clamp around multiple cables
  • Ergonomically designed for a comfortable grip and can be used with protective gloves
  • DC power measurement capability with kVA readings
  • IP65-rated for reliable performance in dusty or damp outdoor environments, ideal for solar and wind power applications
  • Audible and visual polarity indicator to prevent accidental miswiring
  • Low Pass Filter (LPF) and inrush measurement capabilities for precise motor and HVAC testing
  • Min, Max, Average, Peak capturing and display hold
  • Diode test and continuity check functions
  • Low battery and over-range indicators
  • Cat. III 1500V, Cat. IV 600V safety rating
