Reed Instruments

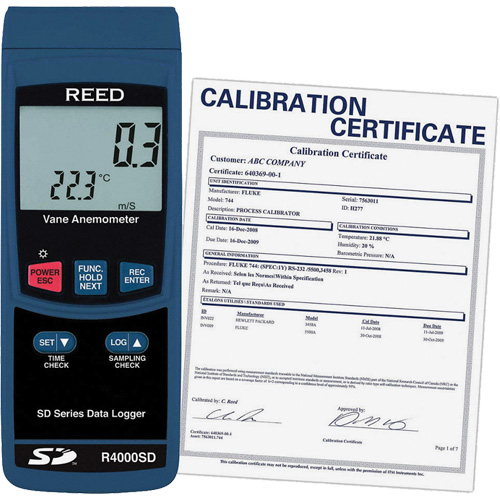

Thermo-Anemometer with ISO Certificate, Data Logging, 0.4 - 30 m/sec Air Velocity Range

Model: IC870

Mfr. No.: R4000SD-NIST

  • Thermo-Anemometer with ISO Certificate, Data Logging, 0.4 - 30 m/sec Air Velocity Range Seagulf Marine Industries Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Air Velocity Range

0.4 - 30 m/sec

Data Logging / Not Data Logging

Data Logging

Measuring Ranges

fpm: 79 to 5906, km/h: 1.4 to 108, mph: 0.9 to 67.1, knots: 0.8 to 58.3, Air Temperature: 32 to 122°F (0 to 50°C), Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C), Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)

Accuracy

Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot), Air Temperature: 1.5°F (±0.8°C), Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)), ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))

Resolution

fpm: 1, m/s, km/h, mph, knot: 0.1, Temperature: 0.1°F/°C

Vane Diameter

2.8" (72mm)

Display

5-digit, Dual LCD Display

Operating Temperature

32 to 122°F (0 to 50°C)

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings
  • Low friction ball-bearing, rotating vane probe ensures high accuracy readings
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Tripod mount on probe and instrument for long-term monitoring
  • Low battery indicator and auto shut off
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
